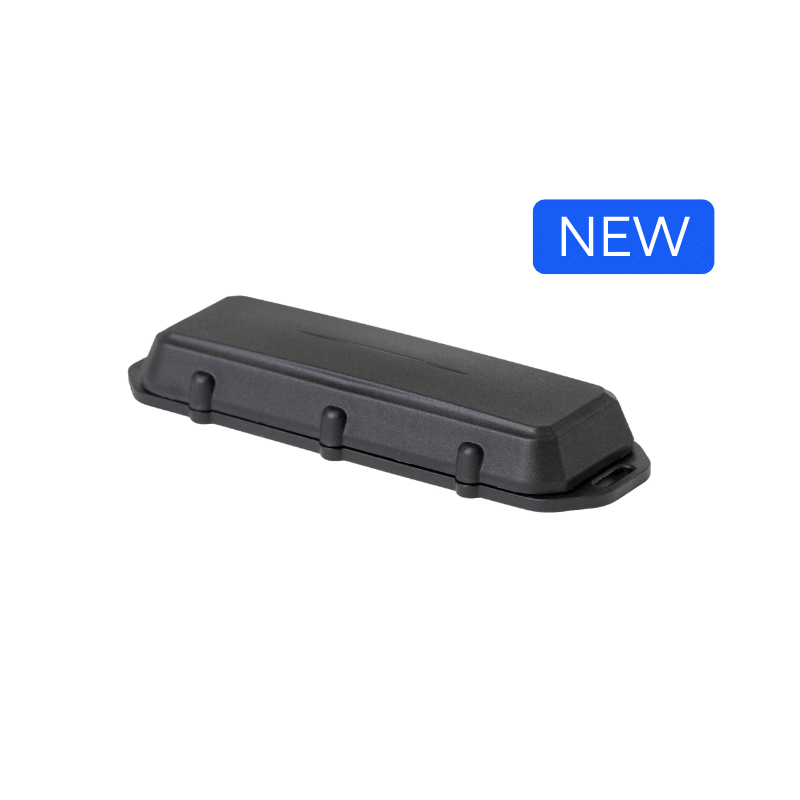

Barra Fusion Cat 1bis
Barra Fusion Cat 1bis is a rugged GPS tracker with 10+ years battery life, cloud-based location solving, and indoor/outdoor tracking. Get started today.
Höjdpunkter
Deployment Ready
Designed for rapid deployment with pre-installed batteries, bundled connectivity, and magnetic activation.
Wire-Free Installation
Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.
Asset Utilization
Capture run hours based on movement to understand and optimize asset utilization.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Cloud-Based Location Solving
Transfers the location processing workload from the device to the cloud for substantial power savings.
Rugged & Weatherproof
Ultra-rugged and waterproof housing ensures device can withstand impact, fine dust, and brief submersion.
Flexible Configuration
Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.
Periodic or Movement-Based
Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Tekniska specifikationer
Connectivity
- Cellular Module
- Modem operates on Cat 1bis bands in Europe, Middle East, Africa, Asia Pacific, Australia, New Zealand and other regions with band support. Supported LTE Bands: B1, B3, B5, B7, B8, B20, B28
- SIM
- eSIM
Outdoor Location (GNSS)
- GNSS
- Concurrent GPS, GLONASS, Galileo, BeiDou, QZSS
- GNSS Assistance
- GNSS almanac and ephemeris data for greater sensitivity and position accuracy.
- Low Noise Amplifier
- GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.
- Cell Tower Location
- Sends cell tower data when GNSS or Wi-Fi signal is unavailable.
- Location Accuracy*
- GNSS: ~1m CEPCell Tower Fallback: ~250m-1km. Dependent on number of nearby towers.
Indoor Location (Wi-Fi Scanning)
- Wi-Fi Location Scanning
- Indoor asset location using Wi-Fi access point scanning.
- Cloud-Based Solver
- Asset location is resolved using Digital Matter’s Location Engine.
- Location Accuracy*
- Wi-Fi Scanning: ~10m-100m with Wi-Fi in urban areas. * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power
- Included Batteries
- Supplied with two pre-installed AA Lithium batteries.
- Supported Battery Types
- LithiumBattery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.
- Battery Life Estimates*
- Once Daily location updates – 10 yearsMovement-Based location updates** – 2 yearsHourly location updates – 9 months
- Sleep Current
- <10uAAverage current in lowest power state. * Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com. ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.
Mechanics / Design
- Dimensions
- 149 x 51 x 21 mm (5.9 x 2 x 0.8 in)
- Device Weight
- 104g with Energizer Ultimate Lithium batteries.
- Housing
- Non-branded nylon glass housing is suitable for white labeling.
- IP/IK Rating
- Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.
- Installation
- Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.
- External Magnet
- Removal of magnet enables quick activation and tamper detection.
- Temperature Range
- Operating: -30°C to +60°CRecommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- Cellular Antenna
- Internal
- GPS Antenna
- Internal
- Wi-Fi Antenna
- Internal
- 3-Axis Accelerometer
- 3-Axis accelerometer to detect movement, high-g events, and more.
- Diagnostic LED
- Diagnostic LED indicates operation status.
- Flash Memory
- Store records if device is out of cellular coverage. View storage capacity here.
- Onboard Speed and Heading
- Current speed and heading is reported with each position update.
- Onboard Temperature
- Provides ambient temperature but may not be suitable for precise temperature logging purposes.
Smarts
- Adaptive Tracking
- Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
- Battery Life Monitoring
- ‘Battery Low’ and ‘Battery Critical’ alert levels.
- Geofence Alerts
- The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.
- Impact Detection
- Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.
- Magnetic Activation
- Removal of the magnet can be used to activate the unit.
- Run Hour Monitoring
- Capture run hours based on movement to understand and optimize asset utilization.
- Sleep Mode
- Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.
- Tamper Detection
- External magnet provides an alert if the device is removed from your asset.
- Theft Recovery
- Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Device Management
- Flexible Configuration
- Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
- Device Management Platform
- Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system.
Integration
- Third-Party Integration
- Integration-ready with any third-party end platform.
- API
- Command and configure the device via rich API functionality.
Security
- Data Security
- Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
Barra Core
NB-IoT
Compact and rugged battery-powered asset tracker with magnetic activation and tamper detection for ultra-low-cost indoor/outdoor visibility.
Barra Edge
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective indoor/outdoor asset tracking.
Barra GPS
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective outdoor asset tracking.
Barra Radar BLE
Bluetooth®
Battery-powered Bluetooth® radar sensor with millimeter-level precision for level and object detection.
Barra Recovery
LTE-M (Cat-M1) / NB-IoT
Covert, long-life stolen asset recovery device with LTE-M/NB-IoT connectivity, multi-technology location, and RF beaconing for last-mile asset retrieval.
Barra Fusion Cat 1bis
4G LTE Cat 1bis
Compact and rugged battery-powered GPS tracker with 4G Cat 1bis connectivity for cost-effective indoor/outdoor asset tracking.
Vanliga frågor om Barra Fusion Cat 1bis
Vad är Barra Fusion Cat 1bis?
Barra Fusion Cat 1bis är Digital Matters senaste batteridrivna GPS-tracker byggd för det nya europeiska 4G-nätet. Med Cat 1bis-modem, Wi-Fi-scanning och GPS får du pålitlig positionering både inom- och utomhus utan att offra batteritiden. Viktiga egenskaper inkluderar: Deployment Ready. Wire-Free Installation. Asset Utilization.
Vilken uppkoppling använder Barra Fusion Cat 1bis?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för Barra Fusion Cat 1bis?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har Barra Fusion Cat 1bis IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar Barra Fusion Cat 1bis med Telematics Guru och andra molnplattformar?
Barra Fusion Cat 1bis skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av Barra Fusion Cat 1bis från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
Barra Fusion Cat 1bis är Digital Matters senaste batteridrivna GPS-tracker byggd för det nya europeiska 4G-nätet. Med Cat 1bis-modem, Wi-Fi-scanning och GPS får du pålitlig positionering både inom- och utomhus utan att offra batteritiden.
Varför välja Barra Fusion Cat 1bis?
Upp till 10 års batteritid på två förinstallerade AA-litium med en daglig positionsuppdatering. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Barra Fusion Cat 1bis med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp Barra Fusion Cat 1bis hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Barra Fusion Cat 1bis. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
