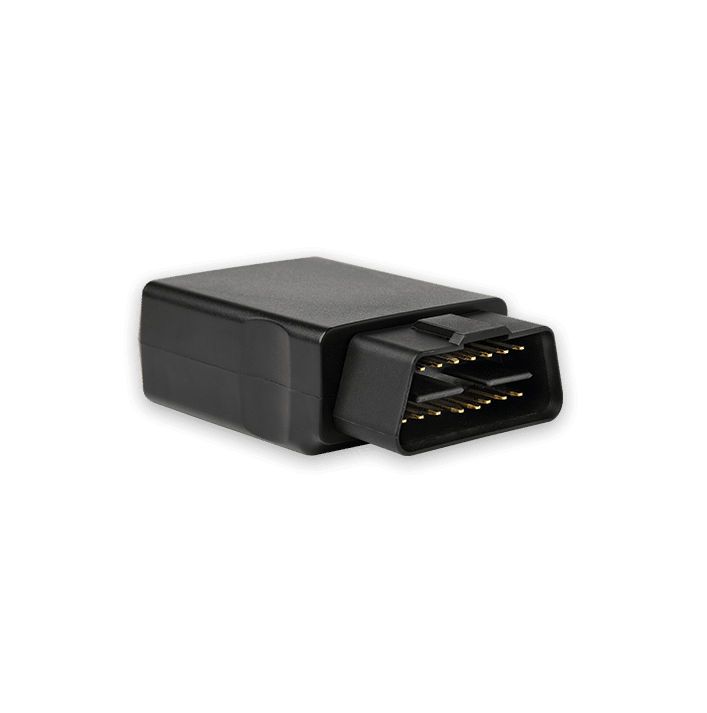

Bolt2
Bolt2 is a plug & play GPS tracker with real-time data and driver alerts. Plug it in and start managing your fleet today - contact us to learn more.
Höjdpunkter
High Precision
GPS/GLONASS/Galileo positioning systems are used simultaneously for enhanced accuracy and faster fixes.
Real-Time Tracking
The Bolt2 OBD GPS Tracker remains continuously connected while on the move for real-time vehicle tracking.
Backup Battery
Features a 300mAh LiPo internal backup battery pack enabling critical ‘unplugged/power loss’ alerts to notify users of device removal or tampering.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Driver Safety & Behavior
Monitor speeding, harsh acceleration, braking, cornering, idling, and more to improve safety and prevent unnecessary wear on vehicles.
Accident & Rollover Detection
Configure accident and rollover alerts triggered by extreme changes in velocity and orientation of vehicle.
Run Hour Monitoring
Calculate run hours and distance traveled (odometer) to understand and optimize vehicle utilization.
White-Label Ready
Non-branded housing for seamless deployments under your own brand.
Geofencing
Create custom geofences and alerts if an asset enters or leaves specific locations.
Flexible Configuration
Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.
AES-256 Encryption
Military-level AES-256 Encryption to protect the integrity and confidentiality of your telematics data.
Tekniska specifikationer
Connectivity
- Cellular Module
- Nordic nRF9160 operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
- SIM Size and Access
- Internal Nano 4FF SIM
Location
- GNSS Module
- u-blox M10
- Constellations
- Concurrent GPS, GLONASS, BeiDou, Galileo
- GNSS Assistance
- GNSS almanac and ephemeris data for greater sensitivity and position accuracy.
- Low Noise Amplifier
- GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.
- Location Accuracy*
- ~2m CEP * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power
- Input Voltage
- 8-33V DC (max). OBDII connector draws power from vehicle’s OBD port.
- Self-Resetting Fuse
- Built-in self-resetting fuse makes installation simple and safe. Stringent automotive power “load dump” tests are conducted to ensure operation in the harshest electrical systems.
- Sleep Current
- <1mA
- Backup Battery
- 300mAh LiPo internal backup battery pack.
Mechanics / Design
- Dimensions
- 71 x 46 x 24 mm (2.8 x 1.81 x 0.94 in)
- Housing
- Non-branded nylon glass housing is suitable for white labeling.
- Installation
- OBDII standard connector draws power from the OBDII port to operate.
- Temperature Range
- Operating: -30°C to +60°CRecommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- Cellular Antenna
- Internal
- GPS Antenna
- Internal
- 3-Axis Accelerometer
- 3-Axis accelerometer to detect movement, high-g events, and more.
- Diagnostic LED
- Diagnostic LED indicates operation status.
- Flash Memory
- Store records if device is out of cellular coverage. View storage capacity here.
- Onboard Speed and Heading
- The device continuously monitors speed and heading, allowing for over-speed alerts as well as updates on speed and heading changes.
- Onboard Temperature
- The device reports internal temperature and prevents the internal battery from charging in extreme temperatures. May not be suitable for precise temperature logging purposes.
Smarts
- Accident and Rollover Detection
- Configure accident and rollover alerts, triggered by extreme changes in the velocity and orientation of the vehicle or equipment. Up to 2 hours of second-by-second ‘black box’ data is stored to provide critical accident reconstruction data.
- Driver Safety and Behavior
- Monitor speeding, harsh acceleration, braking, cornering, idle times and more to improve safety and prevent unnecessary wear on vehicles.
- Geofence Alerts
- The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.
- GPS Jamming Detection
- GPS jamming or interference can be detected and alerted on.
- Preventative Maintenance
- Set reminders based on distance traveled and run hours to reduce maintenance and repair costs.
- Real-Time Tracking
- Device remains continuously connected while on the move for real-time asset tracking.
- Run Hour Monitoring
- Calculate run hours and distance travelled (odometer) to understand and optimize asset utilization.
- Tamper/Removal Alerts
- Critical ‘unplugged/power loss’ alerts to notify users of device removal, tampering, unauthorized trips, or theft.
- Theft Recovery
- Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Device Management
- Flexible Configuration
- Configure device parameters such as position update rate, movement and accelerometer settings, and more.
- Device Management Platform
- Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system.
- Configuration App
- Configurable with DM-Link provisioning tool.
Integration
- Third-Party Integration
- TCP Direct or HTTPS Webhook
- API
- Command and configure the device via rich API functionality.
Security
- Data Security
- Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
Bolt2
LTE-M (Cat-M1) / NB-IoT
OBDII-powered GPS tracker with back-up battery for plug-and-play fleet and vehicle tracking.
Vanliga frågor om Bolt2
Vad är Bolt2?
Bolt2 är Digital Matters nya OBD-II GPS-tracker som kopplas direkt in i fordonets diagnostikport. Med stöd för LTE-M, NB-IoT, 2G samt BLE-scanning levererar den realtidsposition, motordata och förardata utan installation. Viktiga egenskaper inkluderar: High Precision. Real-Time Tracking . Backup Battery.
Vilken uppkoppling använder Bolt2?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för Bolt2?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har Bolt2 IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar Bolt2 med Telematics Guru och andra molnplattformar?
Bolt2 skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av Bolt2 från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
Bolt2 är Digital Matters nya OBD-II GPS-tracker som kopplas direkt in i fordonets diagnostikport. Med stöd för LTE-M, NB-IoT, 2G samt BLE-scanning levererar den realtidsposition, motordata och förardata utan installation.
Varför välja Bolt2?
Idealisk för tjänstebilar, hyrflottor och lättare fordon där enkelhet och snabb rollout är avgörande. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Bolt2 med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp Bolt2 hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Bolt2. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
