Digital Matter · Batteridrivna trackers

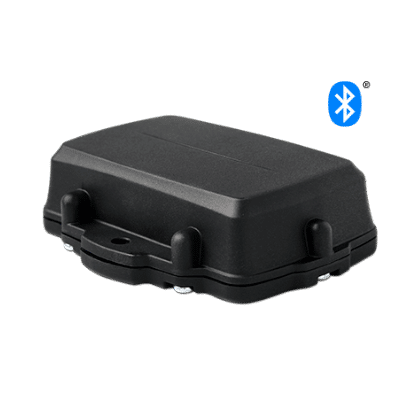

Oyster Edge
Oyster Edge is a battery-powered asset tracking IoT device with GPS, Wi-Fi, and Bluetooth. Track assets anywhere and optimize operations with proven tech today.
Höjdpunkter
Cloud-Based Location Solving
Transfers the location processing workload from the device to the cloud for substantial power savings.
Rugged & Weatherproof
Ultra-rugged and waterproof housing ensures the Oyster Edge can withstand impact, fine dust, and brief submersion.
Wire-Free Installation
Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.
Flexible Configuration
Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.
Periodic or Movement-Based
Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Tip Detection & Rotation Counting
Axis angle reporting, tip detection and rotation counting
Asset Utilization
Capture run hours based on movement to understand and optimize asset utilization.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Tekniska specifikationer
Connectivity
- Cellular Module
- Nordic nRF9160 operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
- Bluetooth®
- Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors for affordable tagged asset management and sensor monitoring.
- SIM Size and Access
- Internal Nano 4FF SIM
Location
- Chipset
- Semtech LR1110
- Environment
- Indoor/Outdoor
- Constellations
- Concurrent GPS, BeiDou
- GNSS Assistance
- GNSS almanac and ephemeris data for greater sensitivity and position accuracy.
- Low Noise Amplifier
- GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.
- Wi-Fi Location Scanning
- Indoor asset location using Wi-Fi access point scanning.
- Cell Tower Location
- Cell tower fallback for positioning when there is no GNSS or Wi-Fi signal.
- Cloud-Based Solver
- Asset location is resolved using Digital Matter’s Location Engine.
- Location Accuracy*
- ~5m-80m with GNSS scanning in open areas ~10m-100m with Wi-Fi in urban areas ~250m-1km Cell Tower Geolocation - dependent on number of nearby towers * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power
- User-Replaceable Batteries
- 3 x AA. Batteries not included. Widely available at most hardware or retail locations.
- Supported Battery Types
- LithiumBattery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.
- Battery Life Estimates*
- Once Daily location updates – 10 yearsMovement-Based location updates** – 7 yearsHourly location updates – 4.5 years
- Sleep Current
- <10uAAverage current in lowest power state. * Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com.** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.
Mechanics / Design
- Dimensions
- 108 x 86 x 30 mm (4.25 x 3.39 x 1.18 in)
- Device Weight
- 163g with Energizer Ultimate Lithium batteries.
- Housing
- Non-branded nylon glass housing is suitable for white labeling.
- IP/IK Rating
- Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.
- Installation
- Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.
- Temperature Range
- Operating: -30°C to +60°CRecommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- Cellular Antenna
- Internal
- GPS Antenna
- Internal
- Wi-Fi Antenna
- Internal
- 3-Axis Accelerometer
- 3-Axis accelerometer to detect movement, high-g events, and more.
- Diagnostic LED
- Diagnostic LED indicates operation status.
- Flash Memory
- Store records if device is out of cellular coverage. View storage capacity here.
- Speed and Heading
- Scanning technology used on this device does not return speed or heading.
- Onboard Temperature
- Provides ambient temperature but may not be suitable for precise temperature logging purposes.
Smarts
- Adaptive Tracking
- Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
- Battery Life Monitoring
- ‘Battery Low’ and ‘Battery Critical’ alert levels.
- Geofence Alerts
- The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.
- Impact Detection
- Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.
- Rotation Counting
- Keeps a count of the number of rotations of the device.
- Run Hour Monitoring
- Capture run hours based on movement to understand and optimize asset utilization.
- Sleep Mode
- Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.
- Theft Recovery
- Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
- Tip Detection
- Define a range of angles that constitutes a ‘tipped’ state and configure alerts.
Device Management
- Flexible Configuration
- Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
- Device Management Platform
- Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system.
- Configuration App
- Configurable with DM-Link provisioning tool.
Integration
- Third-Party Integration
- HTTPS Webhook
- API
- Command and configure the device via rich API functionality.
Security
- Data Security
- Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
Oyster3 GPS
LTE-M (Cat-M1) / NB-IoT
Rugged battery-powered GPS tracker for high-precision outdoor asset tracking.
Oyster3 LoRaWAN®
LoRaWAN®
Rugged battery-powered GPS tracker for high-precision outdoor asset tracking on LoRaWAN networks.
Oyster Edge
LTE-M (Cat-M1) / NB-IoT / Bluetooth®
Rugged battery-powered GPS tracker and Bluetooth® Gateway for asset tracking and wireless condition monitoring.
Oyster3 BLE
LTE-M (Cat-M1) / NB-IoT / Bluetooth®
Rugged battery-powered GPS tracker and Bluetooth® Gateway for asset tracking and wireless condition monitoring.
Oyster3 Global
2G / 4G LTE Cat 1bis
Rugged battery-powered GPS tracker with 4G/2G connectivity for global asset visibility.
Oyster Sigfox
Sigfox
Rugged battery-powered GPS tracker for high-precision outdoor asset tracking on Sigfox networks.
Vanliga frågor om Oyster Edge
Vad är Oyster Edge?
Oyster Edge är Digital Matters edge-optimerade version av den klassiska Oyster-trackern. Den processar rörelse- och positionsdata lokalt för att minska datamängd och maximera batteritid utan att tappa kritiska händelser. Viktiga egenskaper inkluderar: Cloud-Based Location Solving. Rugged & Weatherproof. Wire-Free Installation.
Vilken uppkoppling använder Oyster Edge?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för Oyster Edge?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har Oyster Edge IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar Oyster Edge med Telematics Guru och andra molnplattformar?
Oyster Edge skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av Oyster Edge från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
Oyster Edge är Digital Matters edge-optimerade version av den klassiska Oyster-trackern. Den processar rörelse- och positionsdata lokalt för att minska datamängd och maximera batteritid utan att tappa kritiska händelser.
Varför välja Oyster Edge?
Idealisk för tillgångar med oregelbunden användning där du bara vill ha notifieringar när det händer något viktigt. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Oyster Edge med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp Oyster Edge hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Oyster Edge. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
