Digital Matter · Batteridrivna trackers

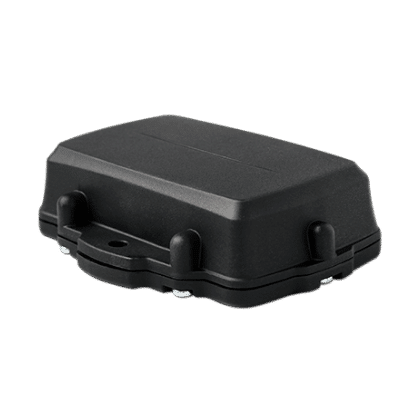

Oyster3 LoRaWAN
Oyster3 LoRaWAN is a battery-powered GPS device locator built for harsh environments. Enjoy 10+ years of reliable IoT asset monitoring. Contact us today.
Höjdpunkter
Global Connectivity
Highly sensitive radio transceiver is available in a single multiband device. Both 868 and 902 - 928 MHz supported for worldwide coverage.
High Precision GPS
GPS, GLONASS, QZSS and Galileo positioning systems are used simultaneously to enhance accuracy and faster fixes. This provides reliable tracking and precise vehicle location data in both urban and remote environments.
Rugged & Weatherproof
Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the Oyster3 LoRaWAN® can withstand impact, fine dust, and brief submersion, ideal for portable GPS trackers used in harsh conditions.
Periodic or Movement-Based
Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Flexible Configuration
Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application. Manage device firmware updates and parameters via DMLink provisioning tool.
Integration
Easy integration with comprehensive documentation and a flexible and open payload format.
Global Support
Experienced support engineers for hardware, software, configuration, and integration guidance.
Wire-Free Installation
Multiple installation options for securing the device to the asset or concealing it within.
Adaptive Tracking
Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval, ensuring portable equipment is quickly located.
Geofence Alerts
Create custom geofences and receive instant alerts if an asset enters or leaves a designated area. Geofences can also be stored directly on the device to support advanced location-based behaviors and increase overall operational efficiency.
Tekniska specifikationer
Connectivity
- LoRaWAN
- Highly sensitive radio transceiver is available in a single multiband device. Both 868 and 902 - 928 MHz supported.
- Regions
- AU915AS923-1AS923-2AS923-3AS923-4EU868IN865KR920RU864US915
Location
- GNSS Module
- Sony CXD5605
- Environment
- Outdoor
- Constellations
- Concurrent GPS, GLONASS, Galileo, BeiDou
- Low Noise Amplifier
- GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.
- Location Accuracy*
- ~1m CEP * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power
- User-Replaceable Batteries
- 3 x AA. Batteries not included. Widely available at most hardware or retail locations.
- Supported Battery Types
- Lithium or Lithium Thionyl Chloride (LTC)Battery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.
- Battery Life Estimates*
- Once Daily location updates – 10 yearsMovement-Based location updates** – 2.5 yearsHourly location updates – 2 years
- Sleep Current
- <10uAAverage current in lowest power state. * Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com. ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.
Mechanics / Design
- Dimensions
- 108 x 86 x 30 mm (4.25 x 3.39 x 1.18 in)
- Housing
- Non-branded nylon glass housing is suitable for white labeling.
- IP/IK Rating
- Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.
- Installation
- Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.
- Temperature Range
- Operating: -30°C to +60°CRecommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- GPS Antenna
- Internal
- RF Antenna
- Internal
- 3-Axis Accelerometer
- 3-Axis accelerometer to detect movement.
- Diagnostic LED
- Diagnostic LED indicates operation status.
- Onboard Speed and Heading
- Current speed and heading is reported with each position update.
Smarts
- Adaptive Tracking
- Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
- Battery Life Monitoring
- Periodic battery status uplinks give a breakdown of power use.
- Geofence Alerts
- The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.
- Sleep Mode
- Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.
Device Management
- Flexible Configuration
- Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
- Configuration App
- Manage device firmware updates and parameters via DMLink provisioning tool. Some parameters can be changed via downlink.
Integration
- Third-Party Integration
- Easy integration with comprehensive documentation and a flexible and open payload format.
Security
- Data Security
- LoRaWAN® networks use AES-128 Encryption so your data is protected.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
Oyster3 GPS
LTE-M (Cat-M1) / NB-IoT
Rugged battery-powered GPS tracker for high-precision outdoor asset tracking.
Oyster3 LoRaWAN®
LoRaWAN®
Rugged battery-powered GPS tracker for high-precision outdoor asset tracking on LoRaWAN networks.
Oyster Edge
LTE-M (Cat-M1) / NB-IoT / Bluetooth®
Rugged battery-powered GPS tracker and Bluetooth® Gateway for asset tracking and wireless condition monitoring.
Oyster3 BLE
LTE-M (Cat-M1) / NB-IoT / Bluetooth®
Rugged battery-powered GPS tracker and Bluetooth® Gateway for asset tracking and wireless condition monitoring.
Oyster3 Global
2G / 4G LTE Cat 1bis
Rugged battery-powered GPS tracker with 4G/2G connectivity for global asset visibility.
Oyster Sigfox
Sigfox
Rugged battery-powered GPS tracker for high-precision outdoor asset tracking on Sigfox networks.
Vanliga frågor om Oyster3 LoRaWAN
Vad är Oyster3 LoRaWAN?
Oyster3 LoRaWAN är Digital Matters mest tåliga batteridrivna tracker byggd för LoRaWAN-nät. Med 10+ års batteritid, IP68/IK08-klassning och kompakt formfaktor är den perfekt för tillgångar som sitter långt från ström och måste rapportera år efter år. Viktiga egenskaper inkluderar: Global Connectivity. High Precision GPS. Rugged & Weatherproof.
Vilken uppkoppling använder Oyster3 LoRaWAN?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för Oyster3 LoRaWAN?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har Oyster3 LoRaWAN IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar Oyster3 LoRaWAN med Telematics Guru och andra molnplattformar?
Oyster3 LoRaWAN skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av Oyster3 LoRaWAN från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
Oyster3 LoRaWAN är Digital Matters mest tåliga batteridrivna tracker byggd för LoRaWAN-nät. Med 10+ års batteritid, IP68/IK08-klassning och kompakt formfaktor är den perfekt för tillgångar som sitter långt från ström och måste rapportera år efter år.
Varför välja Oyster3 LoRaWAN?
10+ års batteritid på tre AA-litium — deploy-and-forget för hela livscykeln för tillgången. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Oyster3 LoRaWAN med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp Oyster3 LoRaWAN hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Oyster3 LoRaWAN. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
