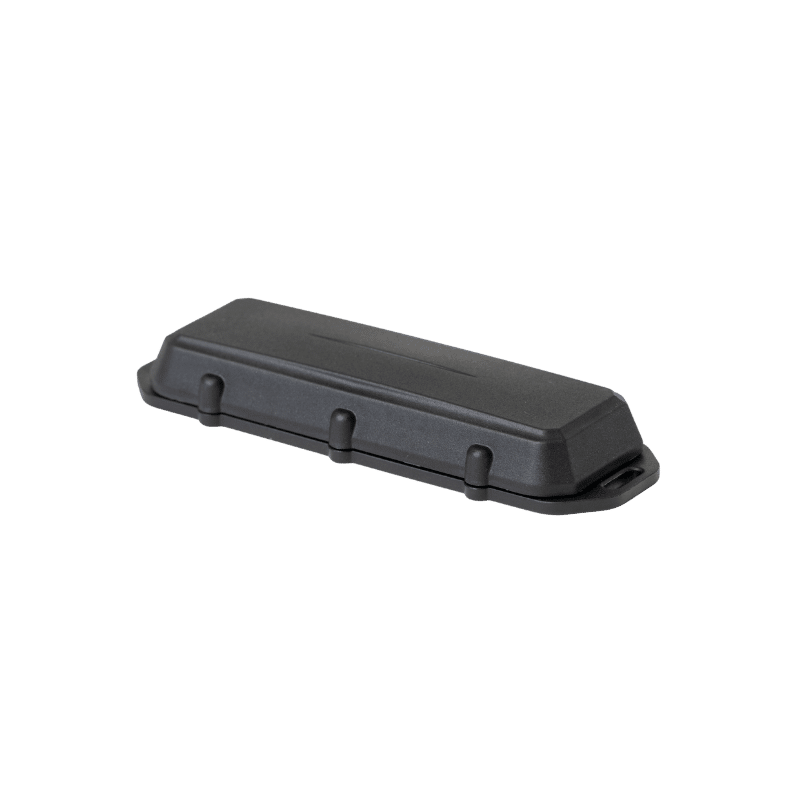

Barra Core
Looking for an affordable GPS tracker? Barra Core offers indoor/outdoor tracking, rugged design, and long battery life. Contact Digital Matter to learn more.
Höjdpunkter
Indoor/Outdoor
Wi-Fi AP MAC Address Scanning and Cell Tower location for indoor/outdoor asset management.
'Deploy Once' Battery Life
Powered by user-replaceable 2 x AA Lithium batteries for 10+ years of battery life with ‘Battery Low’ and ‘Battery Critical’ alerts.
Slim & Ultra-Rugged
Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the Barra Core can withstand impact, fine dust, and brief submersion.
Magnetic Activation & Tamper Detection
Simplify and secure deployments with magnetic activation and tamper detection.
Wire-Free Installation
Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws supplied.
Flexible Configuration
Configure device parameters such as heartbeat rate, movement and accelerometer settings, and more to fit any tracking application.
Periodic or Movement-Based
Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
Cloud-Based Location Solving
Transfers the location processing workload from the device to the cloud for substantial power savings.
Asset Utilization
Capture run hours based on movement to understand and optimize asset utilization.
Theft Recovery
Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
White-Label Ready
Non-branded housing for seamless deployments under your own brand.
Tekniska specifikationer
Connectivity
- Cellular Module
- The Quectel BC660K-GL is a high-performance NB-IoT (NB2) module which supports multiple frequency bands of: B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B28/B66/B70/B85
- SIM Size and Access
- Internal Nano 4FF SIM
Location
- Chipset
- Semtech LR1110
- Environment
- Indoor/Outdoor
- Wi-Fi Location Scanning
- Indoor asset location using Wi-Fi access point scanning.
- Cell Tower Location
- Cell tower fallback for positioning when there is no Wi-Fi signal.
- Cloud-Based Solver
- Asset location is resolved using Digital Matter’s Location Engine.
- Location Accuracy*
- ~10m-100m with Wi-Fi in urban areas~250m-1km Cell Tower Geolocation - dependent on number of nearby towers * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power
- User-Replaceable Batteries
- 2 x AA. Batteries not included. Widely available at most hardware or retail locations.
- Supported Battery Types
- LithiumBattery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.
- Battery Life Estimates*
- Once Daily location updates – 10 yearsMovement-Based location updates** – 4.5 yearsHourly location updates – 3 years
- Sleep Current
- <10uAAverage current in lowest power state. * Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, sensor integrations, peripherals, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com. ** Movement-based estimates are based on 2 hours of movement, occurring 5 days a week, with default trip tracking parameters (location updates every 3 minutes and uploads every 30 minutes). Devices can be configured to provide more frequent location updates when the asset is in motion which will impact battery life.
Mechanics / Design
- Dimensions
- 149 x 51 x 21 mm (5.9 x 2 x 0.8 in)
- Device Weight
- 98g with Energizer Ultimate Lithium batteries.
- Housing
- Non-branded nylon glass housing is suitable for white labeling.
- IP/IK Rating
- Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.
- Installation
- Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.
- External Magnet
- Removal of magnet enables quick activation and tamper detection.
- Temperature Range
- Operating: -30°C to +60°CRecommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- Cellular Antenna
- Internal
- Wi-Fi Antenna
- Internal
- 3-Axis Accelerometer
- 3-Axis accelerometer to detect movement, high-g events, and more.
- Diagnostic LED
- Diagnostic LED indicates operation status.
- Flash Memory
- Store records if device is out of cellular coverage. View storage capacity here.
- Speed and Heading
- Scanning technology used on this device does not return speed or heading.
- Onboard Temperature
- Provides ambient temperature but may not be suitable for precise temperature logging purposes.
Smarts
- Adaptive Tracking
- Configure parameters to send updates based on set time intervals or when movement occurs. Adaptive tracking technology detects when the device is on the move and increases the update rate, providing detail when you need it while conserving battery when stationary.
- Battery Life Monitoring
- ‘Battery Low’ and ‘Battery Critical’ alert levels.
- Geofence Alerts
- The server can use device location to create geofences and alerts if an asset enters or leaves designated locations.
- Impact Detection
- Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.
- Magnetic Activation
- Removal of the magnet can be used to activate the unit, enabling the pre-provisioning of SIM cards and batteries.
- Run Hour Monitoring
- Capture run hours based on movement to understand and optimize asset utilization.
- Sleep Mode
- Stationary devices enter sleep mode until movement occurs to conserve battery life and optimize data usage.
- Tamper Detection
- External magnet provides an alert if the device is removed from your asset.
- Theft Recovery
- Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Device Management
- Flexible Configuration
- Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
- Device Management Platform
- Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system.
- Configuration App
- Configurable with DM-Link provisioning tool.
Integration
- Third-Party Integration
- HTTPS Webhook
- API
- Command and configure the device via rich API functionality.
Security
- Data Security
- Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
Barra Core
NB-IoT
Compact and rugged battery-powered asset tracker with magnetic activation and tamper detection for ultra-low-cost indoor/outdoor visibility.
Barra Edge
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective indoor/outdoor asset tracking.
Barra GPS
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective outdoor asset tracking.
Barra Radar BLE
Bluetooth®
Battery-powered Bluetooth® radar sensor with millimeter-level precision for level and object detection.
Barra Recovery
LTE-M (Cat-M1) / NB-IoT
Covert, long-life stolen asset recovery device with LTE-M/NB-IoT connectivity, multi-technology location, and RF beaconing for last-mile asset retrieval.
Barra Fusion Cat 1bis
4G LTE Cat 1bis
Compact and rugged battery-powered GPS tracker with 4G Cat 1bis connectivity for cost-effective indoor/outdoor asset tracking.
Vanliga frågor om Barra Core
Vad är Barra Core?
Barra Core är Digital Matters mest prisvärda NB-IoT GPS-tracker för långsiktig tillgångsspårning. Med upp till 10 års batteritid på 2×AA, magnetaktivering och IP68-klassad kapsling är Barra Core byggd för att placeras ut och glömmas bort. Viktiga egenskaper inkluderar: Indoor/Outdoor. 'Deploy Once' Battery Life. Slim & Ultra-Rugged.
Vilken uppkoppling använder Barra Core?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för Barra Core?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har Barra Core IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar Barra Core med Telematics Guru och andra molnplattformar?
Barra Core skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av Barra Core från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
Barra Core är Digital Matters mest prisvärda NB-IoT GPS-tracker för långsiktig tillgångsspårning. Med upp till 10 års batteritid på 2×AA, magnetaktivering och IP68-klassad kapsling är Barra Core byggd för att placeras ut och glömmas bort.
Varför välja Barra Core?
Perfekt för containrar, verktyg, släp och utrustning där du behöver full inom- och utomhusspårning utan att byta batterier varje år. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Barra Core med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp Barra Core hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Barra Core. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
