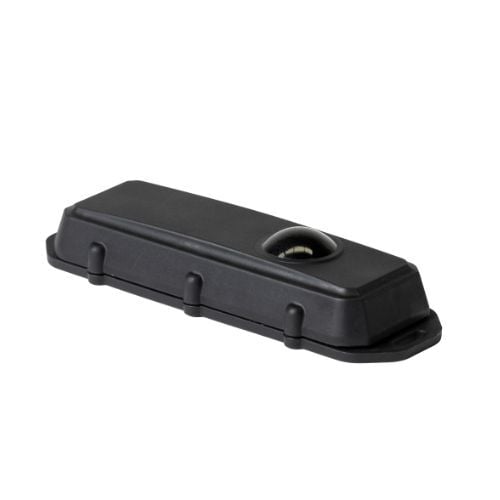

Barra Radar BLE
Barra Radar is a BLE sensor with millimeter accuracy for level & object detection. Rugged, battery-powered, & ready for industrial applications. Learn more.
Höjdpunkter
Bluetooth® Beacon
Bluetooth® 5.3 Beacon for transmitting sensor data.
Asset Utilization
Determine whether an asset is travelling loaded or unloaded with object detection.
Millimeter Accuracy
Tune settings to retrieve distance variations down to the smallest increment.
Rugged & Weatherproof
Ultra-rugged and waterproof housing ensures the Barra Radar BLE can withstand impact, fine dust, and brief submersion.
Off-the-Shelf Batteries
Powered by user-replaceable, off-the-shelf 2 x AA Lithium batteries with ‘Battery Low’ and ‘Battery Critical’ alerts.
Wire-Free Installation
Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more.
High Penetration
Detect objects behind glass, plastic and other non-ferrous materials.
Phone App
Change all aspects of configuration via Bluetooth connection to a smartphone with the Barra Radar app.
Tekniska specifikationer
Connectivity
- Bluetooth® 5.3 Beacon
- Silicon Labs BGM240P Low Energy Beacon for transmitting sensor data.
Sensors
- Radar Chipset
- Acconeer A121 60GHz Pulsed Coherent Radar (PCR)
- Radar Range
- Minimum - 150mmMaximin - 15000mm
- Radar Steps (Resolution)
- Minimum - 2.5mmMaximum - 300mm
- Lens Type
- Plano Convex
- Lens Angle of View
- ~15°
- Scan Interval
- Minimum - 1sMaximum - 2 hours
- Number of Simultaneous Distance Measurements
- 2
Power
- User-Replaceable Batteries
- 2 x AA. Batteries not included. Widely available at most hardware or retail locations.
- Supported Battery Types
- Lithium Battery selection is very important. Follow this link to learn more. Please dispose of Lithium batteries in a safe and responsible manner.
- Battery Life Estimates*
- 2-Hour Scan Interval** – 8+ years30-Minute Scan Interval** – 8+ years5-Minute Scan Interval** – 7+ years
- Sleep Current
- <20uAAverage current in lowest power state. * Battery life estimates are influenced by several factors including scan range, scan steps, BLE advertising power, BLE advertising interval, battery selection and more. Battery life calculators are available at support.digitalmatter.com. ** Estimates are based on 2 seconds advertisement windows, 8dB advertisement power, scanning for objects starting 1m from the PCB and ending 4m from the PCB. Devices can be configured to scan larger distances with high resolution more frequently which will negatively impact battery life estimates.
Mechanics / Design
- Dimensions
- 149 x 51 x 21 mm (5.9 x 2 x 0.8 in)
- Device Weight
- 117g with Energizer Ultimate Lithium batteries.
- Housing
- Non-branded nylon glass housing is suitable for white labeling.
- IP/IK Rating
- Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.
- Installation
- Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.
- Temperature Range
- Operating: -30°C to +60°CRecommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- Diagnostic LED
- Diagnostic LED indicates operation status.
Smarts
- Detection Threshold
- Define two distances to form the min and max detection range for measurements and objects.
Device Management
- Configuration App
- Configurable with DM-Link provisioning tool.
Integration
- Third-Party Integration
- Sensor data can be obtained by third-party hardware via BLE Advertising Payload.
Security
- Data Security
- Military-grade AES-256 Encryption from device to Companion App to protect the device from being reconfigured/updated by unauthorized users.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
Barra Core
NB-IoT
Compact and rugged battery-powered asset tracker with magnetic activation and tamper detection for ultra-low-cost indoor/outdoor visibility.
Barra Edge
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective indoor/outdoor asset tracking.
Barra GPS
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective outdoor asset tracking.
Barra Radar BLE
Bluetooth®
Battery-powered Bluetooth® radar sensor with millimeter-level precision for level and object detection.
Barra Recovery
LTE-M (Cat-M1) / NB-IoT
Covert, long-life stolen asset recovery device with LTE-M/NB-IoT connectivity, multi-technology location, and RF beaconing for last-mile asset retrieval.
Barra Fusion Cat 1bis
4G LTE Cat 1bis
Compact and rugged battery-powered GPS tracker with 4G Cat 1bis connectivity for cost-effective indoor/outdoor asset tracking.
Vanliga frågor om Barra Radar BLE
Vad är Barra Radar BLE?
Barra Radar BLE är en batteridriven BLE-scanner från Digital Matter som rapporterar närvaron av Bluetooth-beacons via cellulär uppkoppling. Används för att spåra stora mängder lågvärdesobjekt som taggats med billiga BLE-beacons. Viktiga egenskaper inkluderar: Bluetooth® Beacon. Asset Utilization. Millimeter Accuracy.
Vilken uppkoppling använder Barra Radar BLE?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för Barra Radar BLE?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har Barra Radar BLE IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar Barra Radar BLE med Telematics Guru och andra molnplattformar?
Barra Radar BLE skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av Barra Radar BLE från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
Barra Radar BLE är en batteridriven BLE-scanner från Digital Matter som rapporterar närvaron av Bluetooth-beacons via cellulär uppkoppling. Används för att spåra stora mängder lågvärdesobjekt som taggats med billiga BLE-beacons.
Varför välja Barra Radar BLE?
Perfekt för verktyg, returemballage och andra tillgångar där beacon-taggning är mer praktiskt än full GPS. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Barra Radar BLE med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp Barra Radar BLE hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Barra Radar BLE. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
