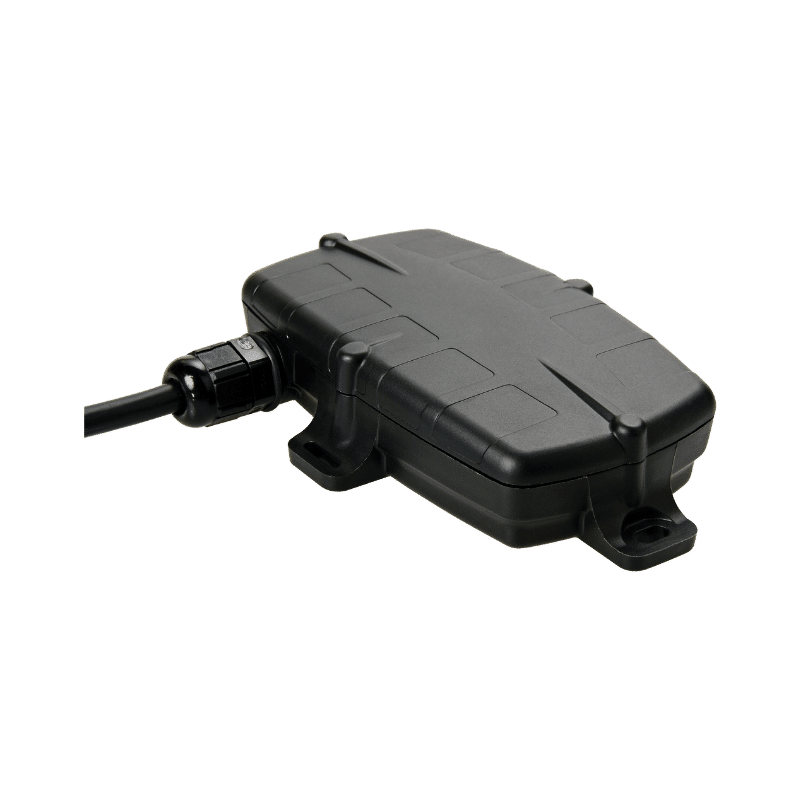

G70 BLE
G70 BLE is a rugged GPS vehicle tracker with real-time tracking, driver behavior alerts, & theft recovery. Protect your fleet - contact us to get started today.
Höjdpunkter
Waterproof and Ultra-Rugged
Ultra-rugged and waterproof IP68 rated housing ensures the G70 BLE can withstand impact, fine dust, and brief submersion.
Remote Immobilization
Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse or unauthorized usage.
Onboard Geofencing
Create custom geofences and alerts if an asset enters or leaves specific locations. Geofences can also be downloaded directly to the device for enhanced location-based behaviors.
Highly Configurable
Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
Tekniska specifikationer
Connectivity
- Cellular Module
- Nordic nRF9160 operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
- Bluetooth®
- Bluetooth 5.2 gateway reports nearby Bluetooth tags and sensors.
- SIM Size and Access
- Internal Micro 3FF SIM
Location
- GNSS Module
- u-blox M10
- Constellations
- Concurrent GPS, GLONASS, Galileo, BeiDou
- GNSS Assistance
- GNSS almanac and ephemeris data for greater sensitivity and position accuracy.
- Low Noise Amplifier
- GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.
- Location Accuracy*
- ~2m CEP * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Power
- Input Voltage
- 8-33V DC (max)
- High-Performance Automotive Power Supply
- Stringent power “load dump” tests are conducted to ensure operation in the harshest automotive electrical systems. Built-in self-resetting fuse makes installation simple and safe.
- Intelligent Power Management
- Device enters sleep mode when vehicle is inactive to prevent battery drain.
- Sleep Current
- <1mA (no peripherals supplied and battery fully charged)
- Backup Battery
- 1100mAh LiPo internal backup battery pack.
Mechanics / Design
- Dimensions
- 126 x 80 x 27 mm (4.96 x 3.15 x 1.06 in)
- Housing
- Non-branded housing is suitable for white labeling.
- IP/IK Rating
- Ultra-rugged and waterproof IP68 and IK08-rated housing ensures the device can withstand impact, fine dust, and brief submersion.
- Installation
- 10 wire harness / 1m length supplied as standard.
- Temperature Range
- Operating: -30°C to +60°C (connected to external power)At < 0°C and > +40°C the internal backup battery will not be charged as a safety precaution due to the dangers associated with charging batteries at extreme temperatures.Recommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- Cellular Antenna
- Internal
- GPS Antenna
- Internal
- 3-Axis Accelerometer
- 3-Axis accelerometer to detect movement, acceleration, high g-force events, and more.
- Diagnostic LED
- Diagnostic LED indicates operation status.
- Flash Memory
- Store records if device is out of cellular coverage. View storage capacity here.
- Onboard Speed and Heading
- The device continuously monitors speed and heading, allowing for over-speed alerts as well as updates on speed and heading changes.
- Onboard Temperature
- Provides ambient temperature but may not be suitable for precise temperature logging purposes.
Interfaces
- Analog Input
- 1 x Analog Input 0-40V
- Digital Inputs
- 3 x Digital Inputs Configurable pull-up/down0-48V DC Input RangeDigital Input 3 pin shared with Driver ID.
- Digital Outputs
- 1 x Switched Ground Digital Output – 2A max Easily wired up to switch external lights, relays, buzzers, etc. Can be used to immobilize a vehicle.
- Ignition
- 1 x dedicated ignition Digital Input 0-48V DC 2.2V on threshold May be used as a digital input if not required.
- TTL Interface
- Serial interface used to connect a Digital Matter RFID reader for Driver ID.
- Wiegand
- Wiegand Interface enables easy integration with a variety of RFID card types and readers.
- 1-Wire® or iButton®
- 1-Wire® or iButton® can be used to read Driver ID tags. Readers available to suit multiple card formats.
Smarts
- Accident and Rollover Detection
- Configure accident and rollover alerts, triggered by extreme changes in the velocity and orientation of the vehicle or equipment. Up to 2 hours of second-by-second ‘black box’ data is stored to provide critical accident reconstruction data.
- Driver ID Options
- Bluetooth®, RFID reader, iButton®, or Wiegand interface for Driver ID, access control, and log booking.
- Driver Safety and Behavior
- Monitor speeding, harsh acceleration, braking, cornering, idle times and more to improve safety and prevent unnecessary wear on vehicles.
- Flexible Input Monitoring
- Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more.
- Geofencing
- The server can use device location to create geofences and alerts if an asset enters or leaves designated locations. Geofences can also be downloaded directly to the device for enhanced location-based actions and alerts. View storage capacity here.
- GPS Jamming Detection
- GPS jamming or interference can be detected and alerted on.
- In-Vehicle Alerts
- Can be wired up to external buzzers or lights for in-vehicle alerts.
- Preventative Maintenance
- Set reminders based on distance traveled and run hours to reduce maintenance and repair costs.
- Real-Time Tracking
- Device remains continuously connected while on the move for real-time asset tracking.
- Remote Immobilization
- Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse, or unauthorized usage.
- Run Hour Monitoring
- Calculate run hours and distance travelled (odometer) to understand and optimize asset utilization.
- Tamper Alerts
- Instant alert if the device is disconnected from its power source.
- Theft Recovery
- Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.
Device Management
- Flexible Configuration
- Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
- Device Management Platform
- Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system.
- Configuration App
- Configurable with DM-Link provisioning tool.
Integration
- Third-Party Integration
- TCP Direct or HTTPS Webhook
- API
- Command and configure the device via rich API functionality.
Security
- Data Security
- Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
G70 BLE
LTE-M (Cat-M1) / NB-IoT / Bluetooth®
Rugged wired GPS tracker and Bluetooth® Gateway with flexible I/O options for fleet, vehicle, and equipment management in harsh environments and wireless sensor monitoring.
Vanliga frågor om G70 BLE
Vad är G70 BLE?
G70 BLE är Digital Matters avancerade telematik-enhet för fordonsflottor med behov av detaljerad driftdata. Den stöder CAN-bus, BLE-scanning, flera digitala in- och utgångar samt 1-Wire för temperatursensorer. Viktiga egenskaper inkluderar: Waterproof and Ultra-Rugged. Remote Immobilization. Onboard Geofencing.
Vilken uppkoppling använder G70 BLE?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för G70 BLE?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har G70 BLE IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar G70 BLE med Telematics Guru och andra molnplattformar?
G70 BLE skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av G70 BLE från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
G70 BLE är Digital Matters avancerade telematik-enhet för fordonsflottor med behov av detaljerad driftdata. Den stöder CAN-bus, BLE-scanning, flera digitala in- och utgångar samt 1-Wire för temperatursensorer.
Varför välja G70 BLE?
Används i tunga fordon, transporter och entreprenadmaskiner där du behöver gå djupare än enbart position. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik G70 BLE med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp G70 BLE hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med G70 BLE. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
