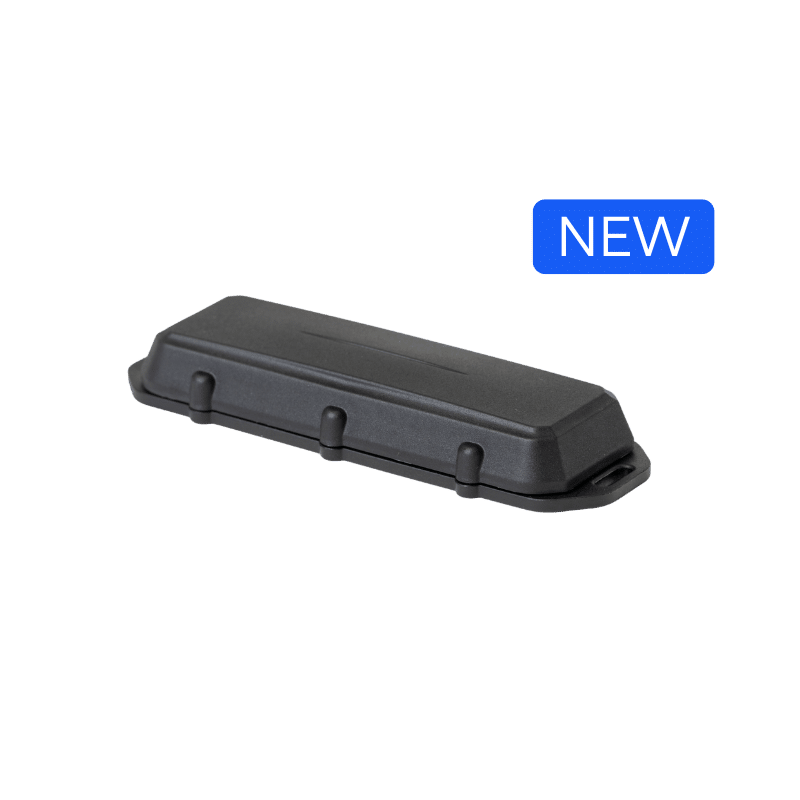

Barra Recovery
Covert, long-life asset recovery device with LTE-M/NB-IoT connectivity, multi-technology location, and RF beaconing for last-mile asset recovery.
Höjdpunkter
10+ Years Standby Mode
Operates in deep sleep with ultra-low power draw, enabling over 10 years of standby time until activation.
Rapid Recovery Mode
Quickly transitions from standby to active tracking when Recovery Mode is triggered remotely.
Indoor/Outdoor Location
Combines GNSS, Wi-Fi access point scanning, and cell tower scanning data for positioning both indoors and outdoors.
Last Mile Recovery
Integrated RF beaconing provides location to the storage unit, container, or floor for recovery.
Direction Finding
Supports physical retrieval using directional handheld receivers.
Impact Detection
Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.
'Deploy Once' Battery Life
Powered by user-replaceable 2 x AA Lithium batteries for 10+ years of battery life..
Slim & Ultra-Rugged
Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the Barra Recovery can withstand impact, fine dust, and brief submersion.
Flexible Configuration
Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
White-Label Ready
Non-branded housing for seamless deployments under your own brand.
Tekniska specifikationer
Connectivity
- Cellular Module
- Operates on all major global LTE-M and NB-IoT bands. Supported LTE bands: LTE-M (Cat-M1): B1, B2, B3, B4, B5, B8, B12, B13, B14, B18, B19, B20, B25, B26, B28, B66 NB-IoT (Cat-NB1/NB2): B1, B2, B3, B4, B5, B8, B12, B13, B17, B19, B20, B25, B26, B28, B66
- SIM Size and Access
- Internal Nano 4FF SIM
Location (Outdoor)
- Constellations
- Concurrent GPS, GLONASS, Galileo, BeiDou
- GNSS Assistance
- GNSS almanac and ephemeris data for greater sensitivity and position accuracy.
- Low Noise Amplifier
- GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.
- Cell Tower Location
- Sends cell tower data when GNSS signal is unavailable.
- Location Accuracy*
- ~2m CEP *Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Location (Indoor)
- Wi-Fi Location Scanning
- Indoor asset location using Wi-Fi access point scanning.
- Cloud-Based Solver
- Asset location is resolved using Digital Matter’s Location Engine.
- Location Accuracy*
- Wi-Fi Scanning: ~10m-100m with Wi-Fi in urban areas. * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.
Short Range Beaconing
- Beacon Type
- 433MHz Radio Transmitter
Power
- User-Replaceable Batteries
- 2 x AA. Batteries not included. Widely available at most hardware or retail locations. Pre-provisioning services available with batteries installed at the factory before shipment. Contact us to learn more.
- Supported Battery Types
- Lithium Battery selection is very important. Follow this link to learn more. Please dispose of batteries in a safe and responsible manner.
- Battery Life Estimates*
- 10+ Years in Standby Mode * Battery life estimates are influenced by several factors including temperature, installation and orientation of the device, battery selection, the frequency of location updates, network coverage, accelerometer settings, and more. Battery life calculators are available at support.digitalmatter.com.
- Sleep Current
- <10uA Average current in lowest power state.
Mechanics / Design
- Dimensions
- 149 x 51 x 21 mm (5.9 x 2 x 0.8 in)
- Device Weight
- 107g with Energizer Ultimate Lithium batteries.
- Housing
- Non-branded nylon glass housing is suitable for white labeling.
- IP/IK Rating
- Ultra-rugged and waterproof IP68 and IK07-rated housing ensures the device can withstand impact, fine dust, and brief submersion.
- Installation
- Compact and concealable. Multiple installation options for covertly and easily securing the device to assets with screws, bolts, cable ties, rivets, and more. Stainless steel screws provided.
- External Magnet
- Removal of magnet enables quick activation and tamper detection.
- Temperature Range
- Operating: -30°C to +60°C Recommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
- Cellular Antenna
- Internal
- GPS Antenna
- Internal
- Wi-Fi Antenna
- Internal
- 3-Axis Accelerometer
- 3-Axis accelerometer to detect movement, high-g events, and more.
- Diagnostic LED
- Diagnostic LED indicates operation status.
- Flash Memory
- Store records if device is out of cellular coverage. View storage capacity here.
- Onboard Speed and Heading
- Current speed and heading is reported with each position update.
- Onboard Temperature
- Provides ambient temperature but may not be suitable for precise temperature logging purposes.
Smarts
- Battery Life Monitoring
- ‘Battery Low’ and ‘Battery Critical’ alert levels.
- Impact Detection
- Configure impact-detection alerts when g-forces are exceeded by a user-defined threshold.
- Magnetic Activation
- Removal of the magnet can be used to activate the unit, enabling the pre-provisioning of SIM cards and batteries.
- Standby Mode
- Toggle between Standby Mode and Tracking Mode to change device behavior. In Standby Mode, the device functions as a covert recovery tracker and does not report GPS locations until remotely activated. In Tracking Mode, the device operates as a standard battery-powered tracker, providing GPS location updates.
- Tamper Detection
- External magnet provides an alert if the device is removed from your asset.
- Rapid Recovery Mode
- Trigger Rapid Recovery Mode to activate full GNSS, Wi-Fi access point scanning, cell tower scanning, and RF beaconing for location.
Device Management
- Flexible Configuration
- Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
- Device Management Platform
- Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system.
Integration
- Third-Party Integration
- Integration-ready with any third-party end platform.
- API
- Command and configure the device via rich API functionality.
Security
- Data Security
- Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.
Warranty
- Manufacturer’s Warranty
- Two-year manufacturer’s warranty. Exclusions apply.
Produktvarianter
Barra Core
NB-IoT
Compact and rugged battery-powered asset tracker with magnetic activation and tamper detection for ultra-low-cost indoor/outdoor visibility.
Barra Edge
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective indoor/outdoor asset tracking.
Barra GPS
LTE-M (Cat-M1) / NB-IoT
Compact and rugged battery-powered GPS tracker with magnetic activation and tamper detection for cost-effective outdoor asset tracking.
Barra Radar BLE
Bluetooth®
Battery-powered Bluetooth® radar sensor with millimeter-level precision for level and object detection.
Barra Recovery
LTE-M (Cat-M1) / NB-IoT
Covert, long-life stolen asset recovery device with LTE-M/NB-IoT connectivity, multi-technology location, and RF beaconing for last-mile asset retrieval.
Barra Fusion Cat 1bis
4G LTE Cat 1bis
Compact and rugged battery-powered GPS tracker with 4G Cat 1bis connectivity for cost-effective indoor/outdoor asset tracking.
Vanliga frågor om Barra Recovery
Vad är Barra Recovery?
Barra Recovery är framtagen för ett enda syfte – att återfinna stulna tillgångar. Enheten monteras dolt i fordonet och håller sig tyst tills den behövs: när ett stöldlarm triggas aktiveras den och rapporterar position med hög frekvens så du snabbt kan larma polis och återta tillgången. Viktiga egenskaper inkluderar: 10+ Years Standby Mode. Rapid Recovery Mode . Indoor/Outdoor Location.
Vilken uppkoppling använder Barra Recovery?
Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.
Hur lång är batteritiden för Barra Recovery?
Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.
Har Barra Recovery IP-klassning för damm och väta?
Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.
Fungerar Barra Recovery med Telematics Guru och andra molnplattformar?
Barra Recovery skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.
Vad ingår vid köp av Barra Recovery från GPS Logik?
Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.
Får jag svensk support och garanti?
Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.
Relaterade Digital Matter-produkter
Barra Recovery är framtagen för ett enda syfte – att återfinna stulna tillgångar. Enheten monteras dolt i fordonet och håller sig tyst tills den behövs: när ett stöldlarm triggas aktiveras den och rapporterar position med hög frekvens så du snabbt kan larma polis och återta tillgången.
Varför välja Barra Recovery?
Extremt lång batteritid i vilomaläge – enheten kan sitta dold i åratal och ändå vara redo när det verkligen behövs. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Barra Recovery med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.
Köp Barra Recovery hos GPS Logik
Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Barra Recovery. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
