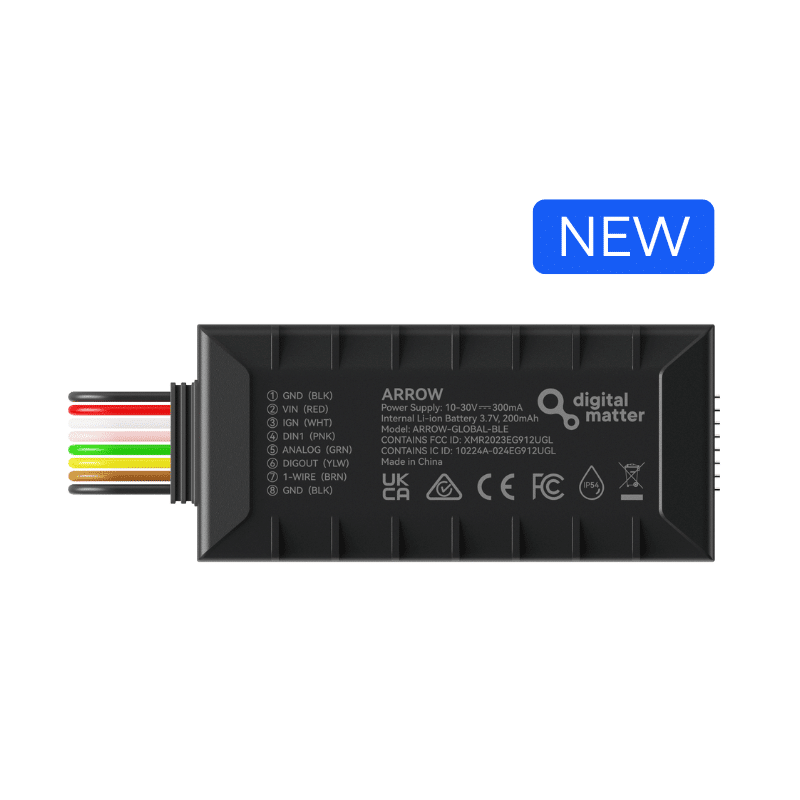

Arrow Global BLE

The Arrow BLE Global is an affordable wired vehicle tracking device with 4G Cat 1bis + 2G connectivity, Bluetooth Gateway functionality, and flexible I/Os.

Begär offert → Ladda ner datablad (PDF)

Höjdpunkter

Real-Time Tracking

Device remains continuously connected while on the move for real-time vehicle tracking.

*BLE Tag & Sensor Monitoring

Integrate with any third-party Bluetooth accessory for customizable sensor and condition monitoring. *Planned in future firmware release.

Accident Detection

Alerts for accidents and rollovers, activated by significant changes in velocity and orientation.

Driver ID

Configure iButton® interface for Driver ID.

Driver Safety & Behavior

Monitor speeding, harsh acceleration, braking, cornering, and more.

Remote Immobilization

Digital outputs can be connected to a relay to enable remote immobilization.

Flexible Input Monitoring

Interface with a range of devices and switches for seatbelt detection, duress buttons, lights, warning buzzers, and more.

Backup Battery

Features an internal backup battery in case of loss of power or tampering.

Tekniska specifikationer

Connectivity

Cellular Module: Quectel EG912 operates on all major global 4G LTE Cat 1bis and 2G bands. Supported 4G LTE Cat 1bis bands:B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B34, B38, B39, B40, B41, B66 Quad-band 2G support for global 2G networks: B34, B38, B39, B40, B41.
Bluetooth®: Bluetooth 4.2 gateway reports nearby Bluetooth tags and sensors.
SIM Size and Access: Internal Nano 4FF SIM

Location

GNSS Module: Quectel LC76G
Wi-Fi Positioning: Disabled at firmware level for future implementation.
Constellations: Concurrent GPS, GLONASS, Galileo, BeiDou, QZSS
GNSS Assistance: GNSS almanac and ephemeris data for greater sensitivity and position accuracy.
Low Noise Amplifier: GPS signals are filtered and boosted by a SAW filter and low-noise amplifier (LNA) allowing operation where other units fail.
Location Accuracy*: ~1.5m CEP * Positioning accuracy specifications are provided by the module supplier and reflect ideal conditions. Device configuration, installation, environmental conditions, augmentation services, and many other factors may lead to variations in positioning accuracy.

Power

Input Voltage: 10-30V DC (max)
High-Performance Automotive Power Supply: Stringent power “load dump” tests are conducted to ensure operation in the harshest automotive electrical systems. Built-in self-resetting fuse makes installation simple and safe.
Intelligent Power Management: Device enters sleep mode when vehicle is inactive to prevent battery drain.
Sleep Current: <1mA (no peripherals supplied and battery fully charged).
Backup Battery: 200mAh LiPo internal backup battery pack.

Mechanics / Design

Dimensions: 98 x 45 x 14 mm (3.86 x 1.77 x 0.55 in) 
Installation: 8 wire harness / 600mm length supplied as standard
Temperature Range: Operating: -30°C to +60°C (connected to external power) At < 0°C and > +40°C the internal backup battery will not be charged as a safety precaution due to the dangers associated with charging batteries at extreme temperatures. Recommended Storage: 10°C to 30°C, Humidity 30%. Store in a cool, dry place.
Cellular Antenna: Internal
GPS Antenna: Internal
3-Axis Accelerometer: 3-Axis accelerometer to detect movement, acceleration, high-g events, and more. 
Diagnostic LED: Diagnostic LED indicates operation status.
Flash Memory: Store records if device is out of cellular coverage. View storage capacity here.
Onboard Speed and Heading: The device continuously monitors speed and heading, allowing for over-speed alerts as well as updates on speed and heading changes.
Onboard Temperature: Provides ambient temperature but may not be suitable for precise temperature logging purposes.

Interfaces

Analog Input : 1 x Analog Input 0-30V
Digital Input: 1 x Digital Input Configurable pull-up/down 0-50V DC Input Range
Digital Outputs: 1 x Switched Ground Digital Output – 2A max Easily wired up to switch external lights, relays, buzzers, etc. Can be used to immobilize a vehicle.
Ignition : 1 x Shared Ignition Digital Input 0-50V DC 2V on threshold May be used as a digital input if not required (fixed pull-down)
1-Wire® or iButton®: 1-Wire® or iButton® can be used to read Driver ID tags. Readers available to suit multiple card formats.

Smarts

Accident and Rollover Detection: Configure accident and rollover alerts, triggered by extreme changes in the velocity and orientation of the vehicle or equipment. Up to 2 hours of second-by-second ‘black box’ data is stored to provide critical accident reconstruction data.
Driver ID Options: RFID reader or iButton® interface for Driver ID, access control, and log booking.
Driver Safety and Behavior: Monitor speeding, harsh acceleration, braking, cornering, idle times and more to improve safety and prevent unnecessary wear on vehicles.
Flexible Input Monitoring: Interface with a range of devices and switches for seatbelt detection, duress and panic buttons, lights, in-cab warning buzzers, and more.
Geofencing: The server can use device location to create geofences and alerts if an asset enters or leaves designated locations. Geofences can also be downloaded directly to the device for enhanced location-based actions and alerts. View storage capacity here.
GPS Jamming Detection: GPS jamming or interference can be detected and alerted on.
In-Vehicle Alerts: Can be wired up to external buzzers or lights for in-vehicle alerts.
Preventative Maintenance: Set reminders based on distance travelled and run hours to reduce maintenance and repair costs.
Real-Time Tracking: Device remains continuously connected while on the move for real-time asset tracking.
Remote Immobilization: Digital outputs can be connected to a relay to enable remote immobilization of vehicles and equipment in the case of theft, abuse, or unauthorized usage.
Run Hour Monitoring: Calculate run hours and distance travelled (odometer) to understand and optimize asset utilization.
Tamper Alerts: Instant alert if the device is disconnected from its power source.
Theft Recovery: Switch to Recovery Mode in the case of theft or loss to activate real-time tracking for asset retrieval.

Device Management

Flexible Configuration: Configure device parameters such as position update rate, movement and accelerometer settings, and more to fit any tracking application.
Device Management Platform: Manage, monitor, configure, debug, update, and restart devices remotely from our cloud-based device management system.

Integration

Third-Party Integration: TCP Direct, HTTPS Webhook, MQTT
API: Command and configure the device via rich API functionality.

Security

Data Security: Military-grade AES-256 Encryption from device to Device Manager to protect the integrity and confidentiality of your data. Data forwarded to third-party systems is sent via HTTPS for end-to-end security.

Warranty

Manufacturer’s Warranty: Two-year manufacturer’s warranty. Exclusions apply.

Certifications

Certifications: Please view our knowledge base for regulatory and network certifications.

Produktvarianter

Dart3 BLE

LTE-M (Cat-M1) / NB-IoT / Bluetooth®

Wired GPS tracker and Bluetooth® Gateway with flexible I/O options for vehicle and fleet management and wireless sensor monitoring.

Vanliga frågor om Arrow Global BLE

Vad är Arrow Global BLE?

Arrow Global BLE är en batteridriven 4G-gateway från Digital Matter som samlar in data från närliggande Bluetooth Low Energy-taggar och -sensorer och skickar den vidare till molnet. Perfekt för dig som vill hålla reda på stora mängder tillgångar utan att behöva installera ström eller nätverk på plats. Viktiga egenskaper inkluderar: Real-Time Tracking. *BLE Tag & Sensor Monitoring. Accident Detection.

Vilken uppkoppling använder Arrow Global BLE?

Se fliken Tekniska data för exakta uppkopplings- och nätverksalternativ. GPS Logik kan alltid hjälpa till att välja rätt variant för svenska nätverk.

Hur lång är batteritiden för Arrow Global BLE?

Batteritiden beror på rapporteringsfrekvens, antal GPS-fixar per dag och vilken sensor som är ansluten. Fullständig batteriindikation finns i Digital Matters datasheet – ladda ner den överst på sidan. Kontakta våra telematikexperter om du vill ha en exakt livscykelberäkning för ditt driftfall.

Har Arrow Global BLE IP-klassning för damm och väta?

Samtliga Digital Matter-enheter har IP67- eller IP68-klassade höljen och klarar tuffa utomhus- och industrimiljöer. Exakt klassning per variant hittar du i fliken Tekniska data samt i datasheet.

Fungerar Arrow Global BLE med Telematics Guru och andra molnplattformar?

Arrow Global BLE skickar data till Digital Matters Telematics Guru som standard. Enheten kan också integreras mot egna molnplattformar, Wialon, Ubidots, AWS IoT och andra system via DMs API och MQTT. GPS Logik hjälper dig komma igång med den molnplattform du föredrar.

Vad ingår vid köp av Arrow Global BLE från GPS Logik?

Du får en ny Digital Matter-enhet direkt från tillverkaren, svensk faktura, snabb leverans från Stockholm, svensk support och hjälp att komma igång med Telematics Guru eller annan molnplattform. Kontakta oss för offert och volymrabatter.

Får jag svensk support och garanti?

Ja. Som auktoriserad nordisk återförsäljare av Digital Matter hanterar GPS Logik både försäljning, svensk förstalinjesupport och garantiärenden. Du behöver aldrig kontakta Australien för att få hjälp.

Varför välja Arrow Global BLE?

Global 4G-täckning via Cat-M1 och NB-IoT med 2G-fallback för tillförlitlig datainsamling oavsett var tillgångarna befinner sig. Som auktoriserad nordisk partner till Digital Matter levererar GPS Logik Arrow Global BLE med svensk support, certifiering mot svenska mobilnät och snabb leverans från Stockholm.

Köp Arrow Global BLE hos GPS Logik

Behöver du hjälp att välja rätt hårdvara och molnplattform för din applikation? Kontakta oss så hjälper våra telematik-experter dig att komma igång med Arrow Global BLE. Fullständiga tekniska specifikationer och alla produktvarianter hittar du i flikarna ovan.
