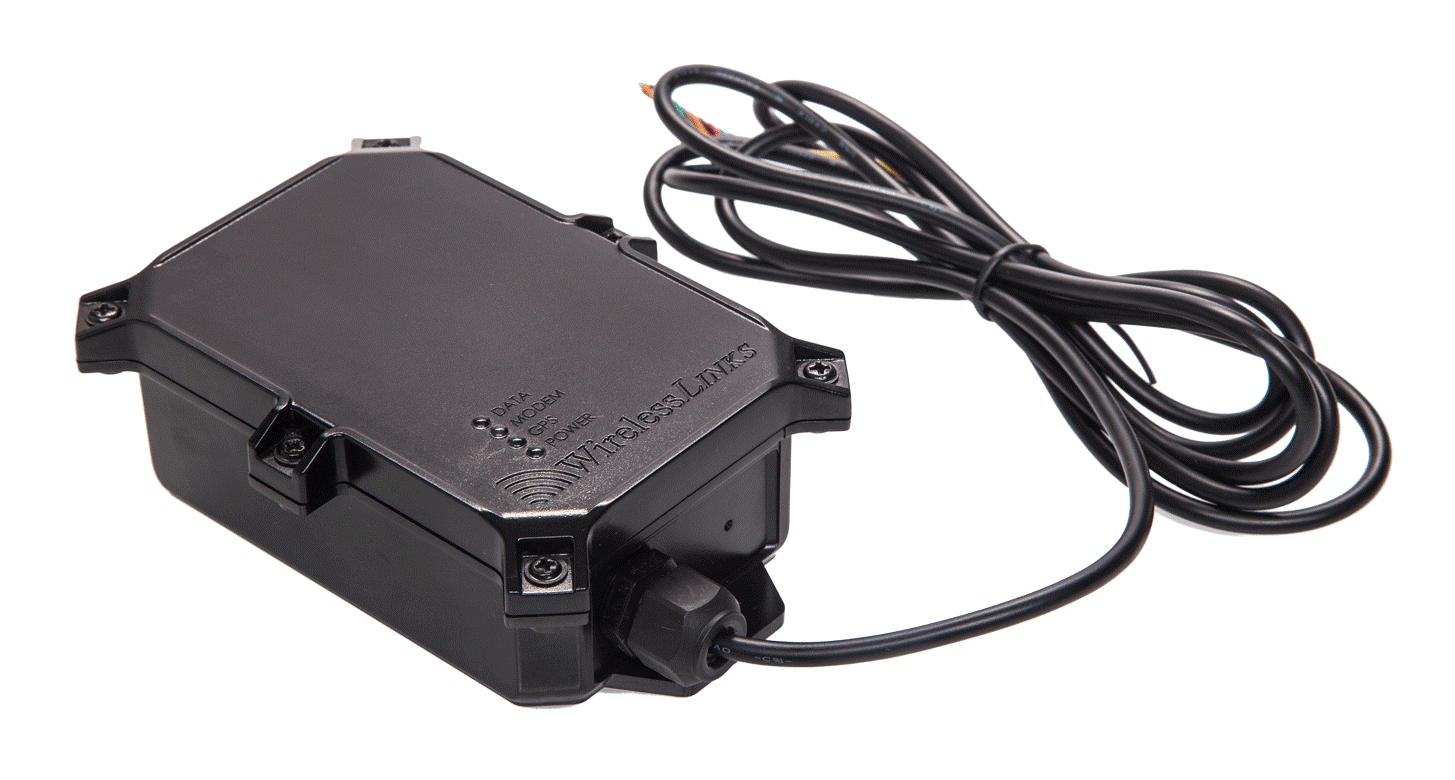

Piccolo Hybrid+
The industry’s most advanced & most versatile dual mode GPS unit for Trailer Tracking

pp

Featuring a large 7800 mAH rechargeable lithium battery capacity, packaged in a compact IP67 waterproof enclosure the Piccolo Hybrid+ is the ideal solution for:
Trailer Tracking, Boat Tracking, Machinery Tracking.

Packaged in a robust IP67 waterproof enclosure with a 7800Mamp rechargeable lithium back up battery, the Piccolo Hybrid+ will automatically switch from regular vehicle tracking mode to asset tracking mode when the external power is disconnected.
• When powered by external power, the Piccolo Hybrid+ operates in real-time vehicle tracking mode sending GPS in high frequency for example every 30 seconds.
• Once power is disconnected, the Piccolo Hybrid+ switches to Asset Tracking (AT) mode sending data 1-2 (user-defined) times a day when parked. Once movement/vibration is detected, the Piccolo Hybrid+ will automatically wake up, send an alarm and for as long as the vibration continues will switch to report data at a more frequent interval (user-defined) for example every 10 minutes.
• The Piccolo Hybrid+ is a very sophisticated device providing you with advanced reporting of notifications to your server, including when and where the external power is connected/disconnected.
• The current battery level is sent together with every message.
• Easily reconfigure the Piccolo Hybrid+ OTA or by sending SMS commands.
• The Piccolo hybrid+ is not just a hardware product, it’s a complete mobile solution packaged with: UDP or TCP/IP communication, flexible and comprehensive local and OTA user configuration tools, OTA diagnostics and API’s with various sample codes for Plug & Play integration into any 3rd party server.

Options
• Up to 6 external digital temperature sensor’s for refrigerated trailers
• CANbus J1939/OBDII or J1708
• Waterproof DC port for stand-alone Asset Tracking Applications

Small Size, Long Battery Standalone Container or Asset Tracker
Packaged in a waterproof IP67 enclosure, the Piccolo Hybrid+ is also a small-sized standalone container or any asset tracker with a battery life of up to 5 year or up to 5000 GPS on a single charge when powered off the internal 7800 mAH rechargeable lithium battery.
• Easy to configure separate reporting intervals based on movement.
• When movement/vibrations are detected, the device can be configured to stay awake for the duration of movement and report in real-time.
• When an event is detected, the Piccolo Hybrid+ is programmable to send an SMS alarm to mobile phones together with the current GPS coordinates
• Easily recharge the battery with a standard 12VDC wall charger.

Easy Installation
• Magnets – For easy installation on metal surfaces
• Two sided 3M Industrial tape- for a strong, permanent attachment
• Screw installation
